Piling

Drilling rig Casagrande B-125



Drilling rig B125 is used for production of drilled concrete piles using CFA method of endless spiral and for thick diphragm walls.
Engine Type Diesel
Power [kW] 164
Max. slope inclination in transport mode [%]
Max. slope inclination in working mode [%]


  Piling Diaphragm
Diameter [mm] 500 - 800 500, 600
Max depth [m] 20 28
Transport dimensions [cm][WxLxH] 250x1480x340 250x1160x328
Weight[kg] 36900 32000
Working dimensions [cm][WxLxH] 370x680x2243 370x738x2156
Min. pile distance from the wall [cm] 130
Max torque [Nm] 112 112



Diaphragm mode

CFA mode

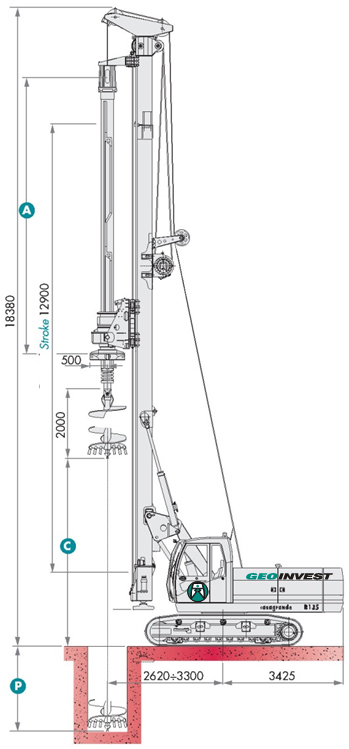

Drill rig Casagrande B-135



Drill rig B135 is used for production of drilled concrete piles type benotto (with casing). Rig is made by newest ecological standards concerning noise, gasess etc..Pile production is supported with accurate electronic equipment for the best product quality.


Engine type Diesel
Hydraulic
Noise [Db]
Max. slope inclination in transport mode [%]
Max. slope inclination in work mode [%]


Diameters  [mm] 600 - 1000
Max depth [m] 24
Transport dimensions [cm][WxLxH] 250x1400x350
Weight[kg] 44000
Working dimensions [cm][WxLxH] 370x675x1830
Min. pile distance from the wall [cm]





Drill rig Casagrande B-250



Drill rig B250 is used for drilled concrete piles CFA type or drilled piles with casing.

Engine type Diesel
Hydraulic
Noise [Db]
Max. slope inclination in transport mode [%]
Max. slope inclination in work mode [%]


  Piles CFA  Piloti cased
Diameters [mm] 600 - 1000 800 - 1500
Max depth [m] 27 37
Transport dimensions [cm][WxLxH] 300x1855x377 300x1700x365
Weight[kg] 67000 70000
Working dimensions [cm][WxLxH] 450x895x2866 450x922x2197
Min. distance of pile from the wall [cm]



CFA mode

Casing mode

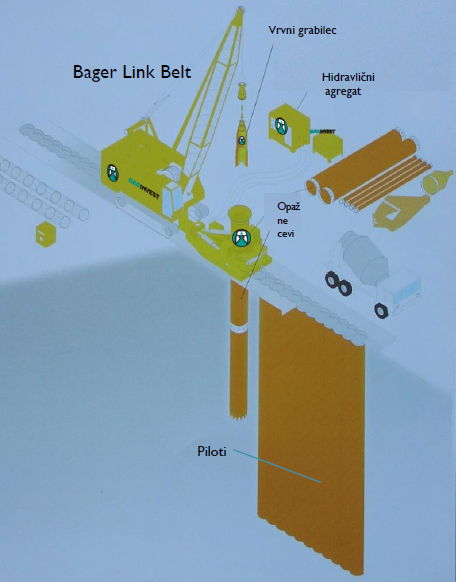

Bager Link Belt LS - 78

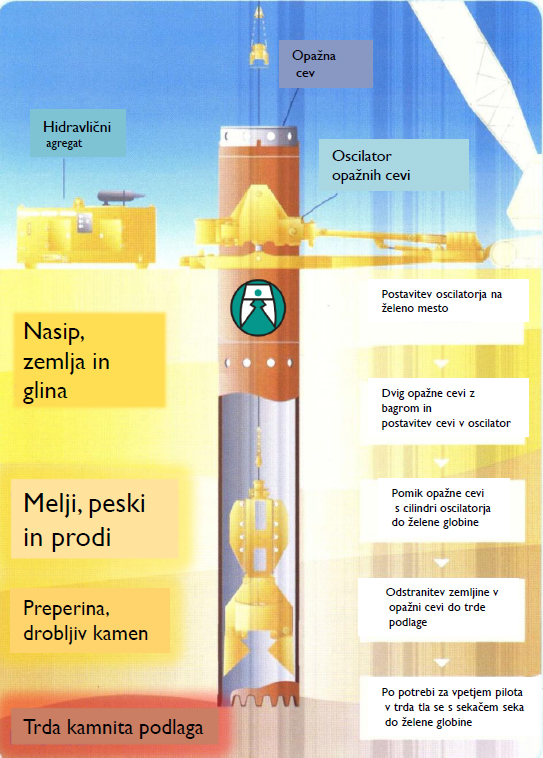

Vrvni bager Link Belt LS – 78 je namenjen izdelavi AB benotto pilotov s cevitvijo v vseh geoloških pogojih.

Tip motorja Diesel
Glasnost stroja [Db]
Max. naklon brežine v transportnem položaju [%]
Max. naklon brežine v delovnem položaju [%]


Premeri [mm] 600 - 1000
Max globina [m] 60
Transportne dimenzije [cm][ŠxDxV] 240x1120x330
Teža[kg] 29000
Delovne dimenzije [cm][ŠxDxV] 315x900x1800
Min. odmik pilotov od stene [cm]

Rig Link Belt LS - 108


Rope crawler rig Link Belt LS - 108 is intended for benotto piling, digging wells, gas-wells with casing in all geological conditions.


Engine type Diesel
Noise [Db]
Max. slope inclination in transport mode [%]
Max. slope inclination in work mode [%]


Diameter [mm] 800 - 1500
Max depth [m] 50
Transport dimensions [cm][WxLxH] 240x1120x350
Weight [kg] 35670-39500
Work dimensions [cm][WxLxH] 416x1080x1800
Min. distance from the wall [cm] 130

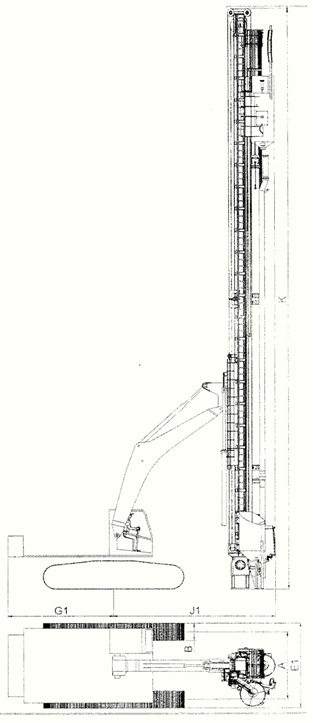

Hdyraulic rig Pennine WMC


Hydraulic rig Pennine WMC is made on latest ecological standards for production of vibro stone and vibro concrete piles.

Engine type Diesel
Engine power [kW] 335
Max. slope inclination in transport mode [%] 21
Max. slope inclination in work mode [%] 10


  Stone piles Concrete piles
Diameters [mm] 400 - 700 400 - 600
Max gdepth [m] 15,5 15,5
Transport dimensions [cm][WxLxH] 342,5x1200x350 342,5x1200x350
Weight[kg] 70000 70000
Work dimensions [cm][WxLxH] 342,5x1025x2369 342,5x1025x2369


B Track width 700 mm
E1 Rig width 3425 mm
K Rig height 23690 mm
G1 Distance from the axis of rotation - back 4090 mm
J1 Distance from the axis of rotation - front 6250 mm



-->
  • Ivanjkovci (SLO)

  • Rudnik (SLO)

  • Žusterna (SLO)

  • Brežice (SLO)

  • Idrija (SLO)

  • Škofljica

  • Semedela (SLO)

  • Gladno Polje Sarajevo (BiH)

  • Tarčin (BiH)

  • Marindvor, Sarajevo (BiH)

  • Čemerno (BiH)

  • SM 102

  • Kleče (Ljubljana)

  • Bekve pri Ljubljani

  • Salt factory - Tuzla

  • Bridge Studenčica

  • Koper - Spar

  • Mokronog

  • Medicinska fakulteta Maribor

  • Domžale

  • Škofja Loka

  • Hudourniška Ljubljana

  • Krško

  • Ptuj - Dominikansi samostan

  • Tobačna mesto Ljubljana

  • Tičiči (BiH)

  • Kemijski inštitut Ljubljana

  • Mahovljani (BiH)

  • Osijek (HR)

  • Trzin

  • Ljubljana Prule

  • Ljubljana Vič

  • Škofljica 2012

  • Bled Hotel Astoria

  • Kleče (Ljubljana)

  • Tuzla (BiH)
